Iron remover

  • RCD -- suspended electromagnetic iron remover

RCD -- suspended electromagnetic iron remover

  • Rcdb series of electromagnetic iron remover is an efficient, environmental friendly and energy-saving iron remover with strong attraction generated by electromagnetic coil. The excitation coil is naturally cooled, and the internal part is poured with epoxy resin specially used for electrical engineering. It is dust-proof, rain proof, corrosion-resistant, low temperature rise, deep magnetic permeability and strong suction. It works stably and reliably in extremely bad environment.


Product Name: RCD type hanging electromagnetic iron remover

Rcdb series of electromagnetic iron remover is an efficient, environmental friendly and energy-saving iron remover with strong attraction generated by electromagnetic coil. The excitation coil is naturally cooled, and the internal part is poured with epoxy resin specially used for electrical engineering. It is dust-proof, rain proof, corrosion-resistant, low temperature rise, deep magnetic permeability and strong suction. It works stably and reliably in extremely bad environment.

This series of products can be used with various types of belt conveyor, vibration conveyor, blanking pipe and other conveying equipment. It can remove the ferromagnetic material mixed in the non-magnetic material with the weight of 0.3 ~ 35kg, and ensure the normal and safe operation of the equipment (grinder, crusher, etc.) in the next process. The product has been widely used in cement, thermal power generation, mining, ceramics, non-metallic minerals, metallurgy, chemical industry, glass, paper, building materials and other industries. It can operate without fault in all kinds of harsh environments for a long time.

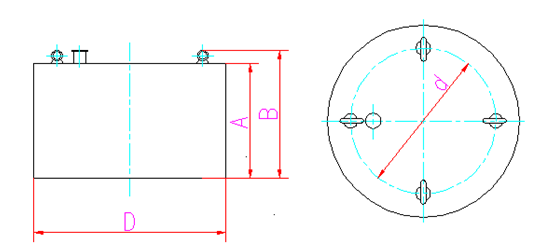

Structural diagram of RCD series hanging electromagnetic iron remover:


主要技術參數:

project

Adaptive bandwidth
  mm

Rated lifting heighthmm

magnetic field intensity

mT

Material thickness

mm

Excitation power

kw

Adaptive band speed≤m/s

Working system

parameter

Model

RCDB-4

400

120

50

70

0.6

2.5

continuity

RCDB-5

500

150

60

100

1.0

RCDB-6

600/650

180

63

130

1.6

RCDB-6.5

650

200

70

150

2.0

RCDB-8

800

250

70

200

3.6

RCDB-10

1000

300

70

250

5.0

RCDB-12

1200

350

70

300

6.8

RCDB-14

1400

400

70

350

9.0

RCDB-16

1600

450

70

400

13

RCDB-18

1800

500

70

450

18

RCDB-20

2000

500

70

500

20
